Public/private keys

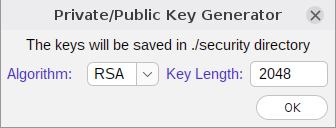

Keys are easily generated by SIP Inspector (Tools/Security Keys, or -genKeys). Four types are offered: RSA, DSA, DH and EC. The key length is in bits. The general rule is: the more bits, the stronger the encryption and the slower the processing. EC (elliptic curve) keys are the best of both worlds: they are relatively short and give superb security and speed. The length is checked: RSA, DSA and DH keys are 512 to 16384 bits; EC lengths are the curve sizes 163, 192, 224, 233, 256, 409 and 571. To generate keys select the algorithm and the length, press OK, and the keys are in the security folder (private.pem and public.pem). The table compares RSA and EC lengths of about the same strength:
